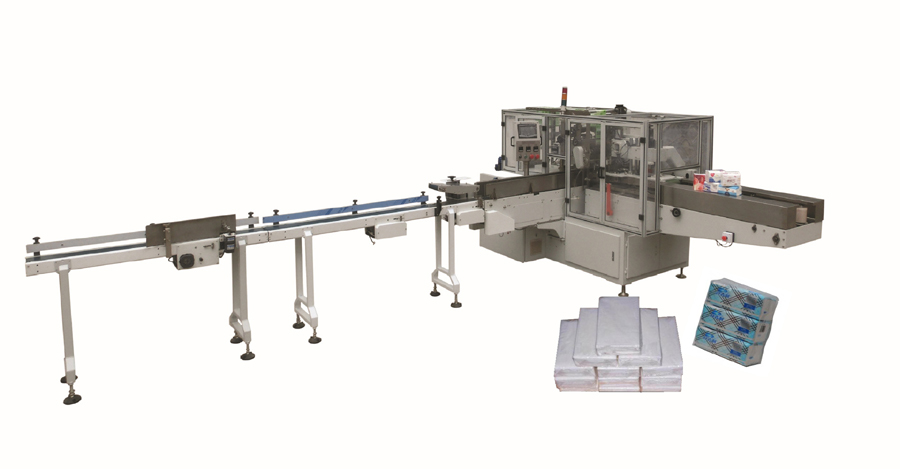

Main performance and features,

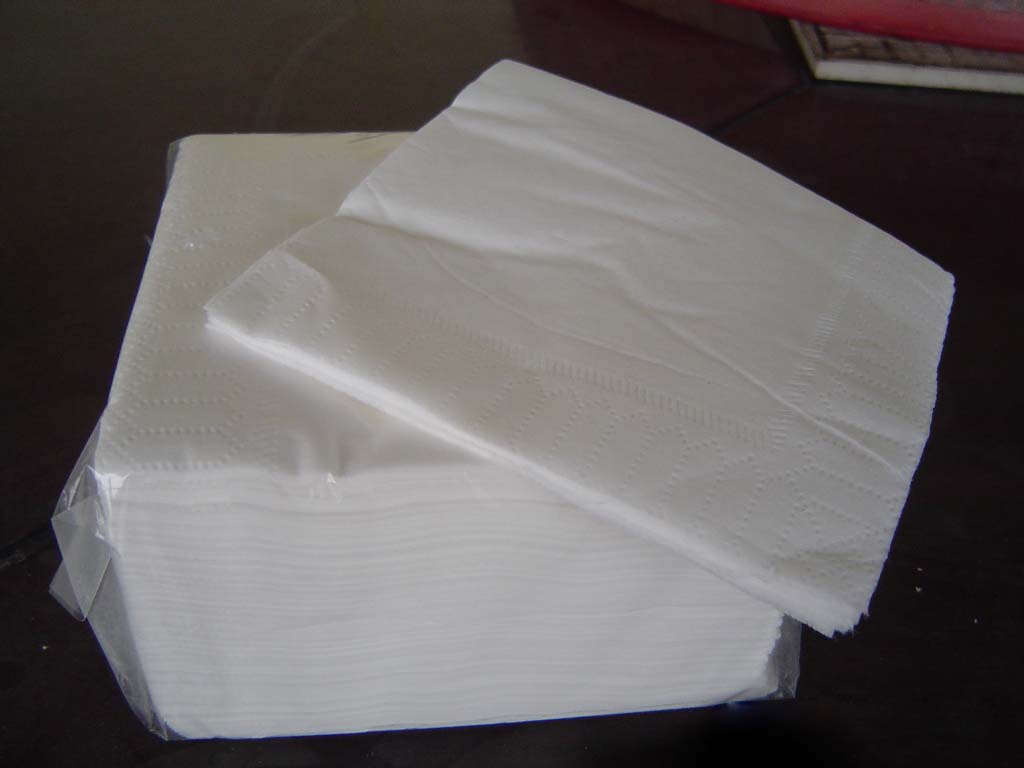

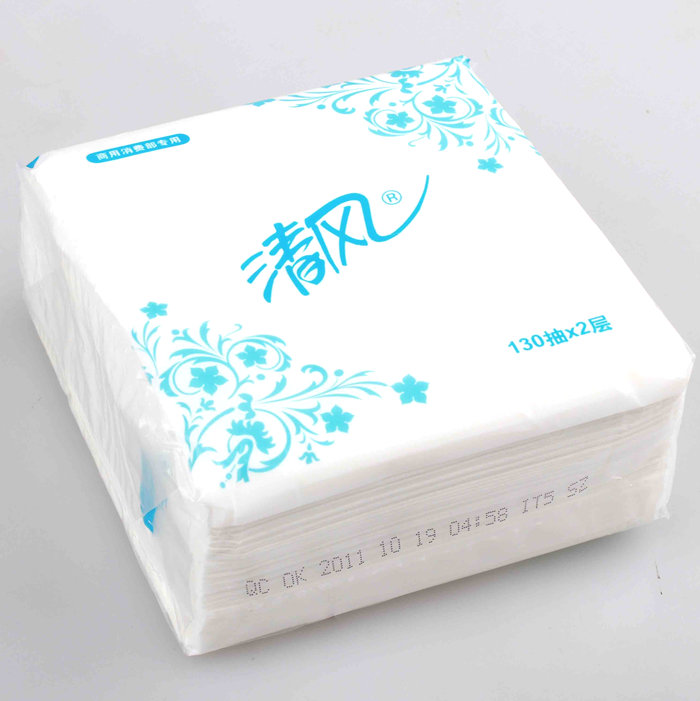

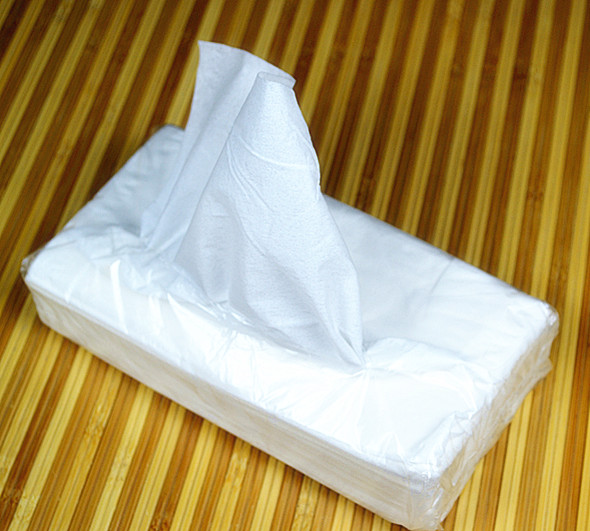

1 Mainly used in soft pumping, napkin and square bags  semi-automatic packaging machine, after manual packing,it will auto-seal.

2 Adopt PLC programming control, LCD parameters display,can be set up to relevant system parameters, realized the man-machine dialogue, more precise control.

3 3 personal operation, this machine can be directly connected to middle bag packaging machine, and the speed of machine will be faster, more save manpower, and greatly improve the production efficiency, reduce manufacturing cost and management cost, reduce the production space.

4 Effect of packing seal beautiful, neat, accurate control, full half automation

5 The machines construction is reasonable , stable performance, strong material, water-cooled heat wire protection, make the heating wire and high temperature resistant adhesive durable.

6 Work after reaction, make the operation workers more sense of security.

7 The same machine can product packaging specifications.

Main technical parameters

1 Packing speed 15-22Packages/minute

2 Power voltage: 220V 50HZ

3 Pneumatic:0.6MPA(Customer should provide for their own)

4 Total power:0.4KW

5 Packing size L40~200*W70~120*H50~180mm(According to the sample)

6 Machine Size:3600mm*1700mm*1500mm

7 weight 400KG

Note Length, width and height can be mobilized at will, for the quality of our service, need to selected specifications to customized.
